Coinco 3000-S / Vending Controller Diagnosis

Problem

A vending machine automatically triggered one selection when credit reached $0.50. The symptom could have come from the motor circuit, bypass wiring, selection logic, controller, or credit system.

Description

What I built or investigated

I isolated the fault by observing the exact trigger condition, disconnecting the affected motor, measuring the two-wire display circuit, inspecting the controller electronics, and tracing the machine’s rotary position/feedback mechanism instead of replacing parts blindly.

Iterations

The work did not happen in one jump.

1. 01

   Confirmed that the unwanted vend occurred at the credit threshold.

2. 02

   Disconnected the selection motor and verified that the automatic vend stopped, narrowing the problem to that path.

3. 03

   Measured both DC and AC behavior on the two-wire display and investigated how changing display information could be carried over two conductors.

4. 04

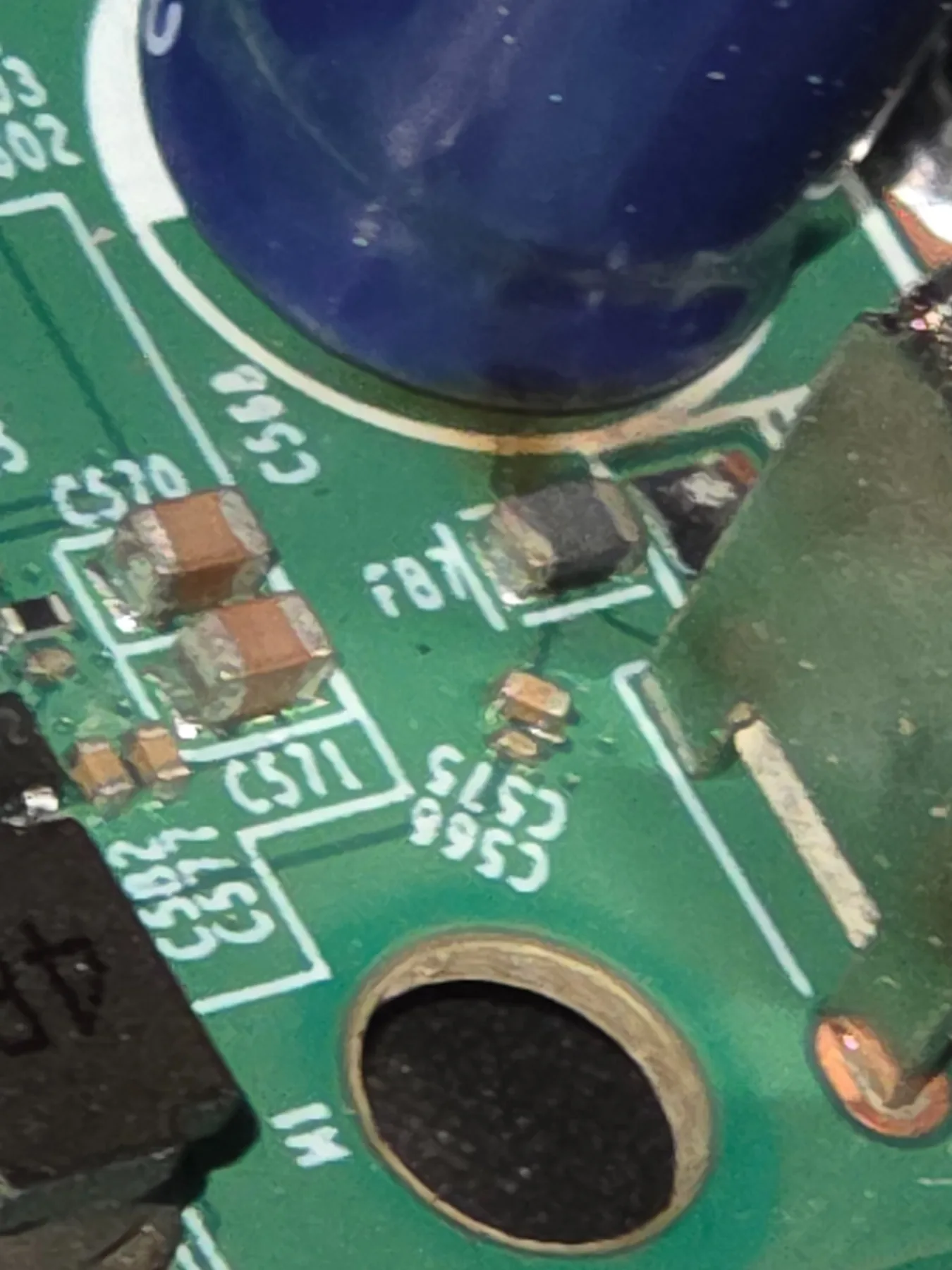

   Inspected the controller PCB, motor-driver circuitry, and a suspect surface-mount area for physical evidence of failure.

5. 05

   Examined the vending mechanism’s rotary position/feedback assembly to understand how the controller knew where the mechanism was located.

6. 06

   Considered the bypass/free-vend switch hypothesis and tested whether unplugging it should remove the symptom.

7. 07

   Separated the completed paid diagnostic from an optional free-vend conversion the customer declined.

Result

Where the project landed

The service call produced a defensible fault-isolation record, documented the internal controller and feedback hardware, and preserved a clear scope boundary without forcing a conversion the customer did not want.

Lessons

What carried forward

• A repeatable trigger condition is valuable diagnostic evidence.
• Unplug tests are powerful when each one answers a specific topology question.
• Customer choice and scope control are part of a professional repair.
